PUMP FOR ENAMELS AND AGGREGATES WASHING

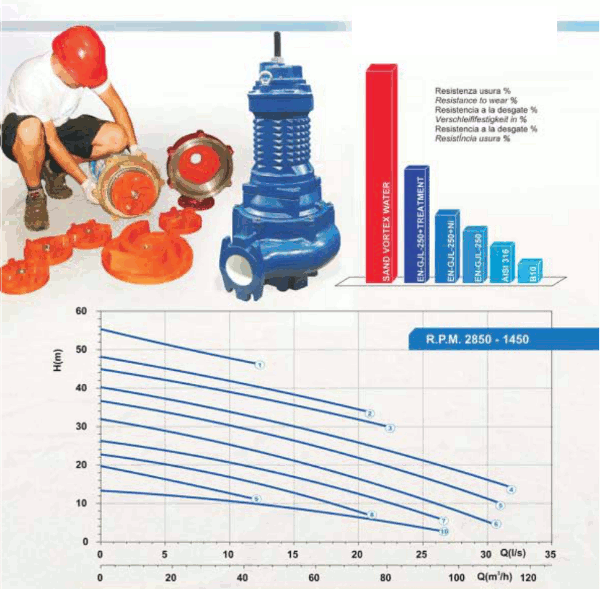

performance curves

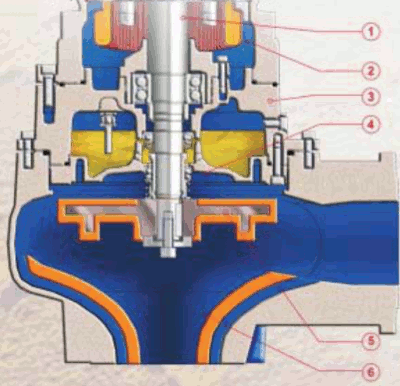

section view PUMP FOR ENAMELS AND AGGREGATES WASHING impeller PUMP FOR ENAMELS AND AGGREGATES WASHING

Applications

The SAND VORTEX WATER submersible electric pump are designed to suit applications in plants with an high sand presence, in marble work companies, in the ceramic industry, crystal machining or industrial processes where there's presence of abrasives liquids.
The Polyurethane coating guarantees an high pump reliability, saving management costs.

Materials

(1) Shaft : stainless steel AISI 420B
(2) Motor : insulation class H(180C); protection IP68
(3) Housing : Cast-iron EN-GJL-250
(4) Mechanical seal : upper Ceramic/Graphite; lower silicon carbide/silicon carbide
(5) Impeller in Polyurethane with a stainless steel core
(6) Diffuser in Cast-iron EN-GJL-250 coated by Polyurethane in the parts subjected to high wear

Ask for our specific tecnical
bulletins
