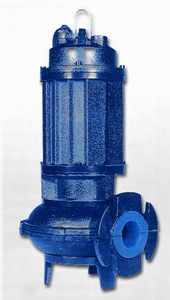

Electric submersible pump for abrasive liquids
submersible pump Vulkollan lined for abrsive liquids

Technical characteristics :

Casing and impeller are vulcanized with a special antiabrasive Vulkollan compound

Triple mechanical seal system:

Silicon Cardibe

dry-run it's allowed installing flushing system

Capacity min/max:

3,6 /180 mc/h

Head:

15 m.w.c.

Electric motor:

ermetic 1,7 /16,4 Kw - rpm2850 - 1450

Connections:

DN 50 - 80

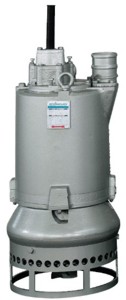

SUBMERSIBLE PUMP FOR VISCOUS, THICK AND
VERY ABRASIVE MUDS

submesrible pupm EL15 series

Technical characteristics :

Body :spheroidal cast iron GS500
Wearing parts : C.H. VI UNI ISO 8845-GB Cr Mo Ni 20 21

Triple mechanical seal system:

Oil-flooded silicon carbide + 2 PTFE seals + rubber seals with steel spring

Agitator : incorporated to facilitate the pumping fluid
Capacity min/max: from 30 to 1200 mc/H

Head:

up to 43 m.

Electric motor:

from KW 3,7 to KW 295 rpm 1450 down to 600

Connections:

from DN80 to DN300 PN 10


Ask for our specific tecnical
bulletins
